A fully automated robotic workstation integrating vision positioning, drilling, milling, and grinding to deliver efficient, one-stop precision machining for metal parts.
Robotic Grinding and Drilling Machine with Machine Vision
Description
Machine Description

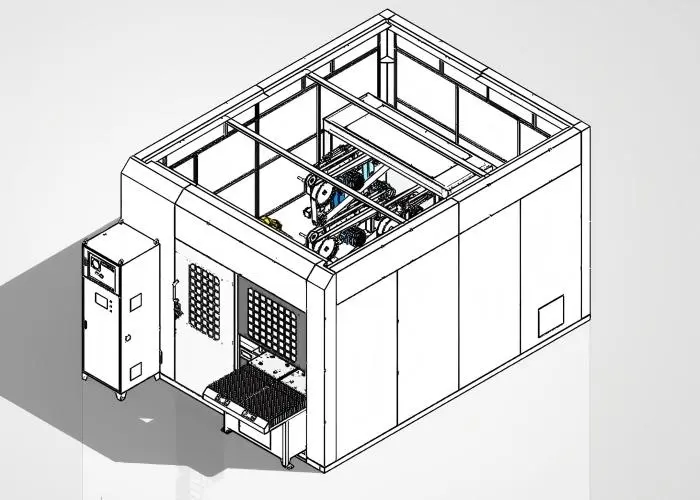

HLD25-G9-E2-VS is an integrated fully automatic robotic workstation independently developed by Xiamen Dingzhu Intelligent Equipment Co., Ltd. Compared with the previous HLD35-F4-G2 polishing machine, this model adds a vision positioning system and a built-in dual-spindle drilling & milling unit, realizing one-stop automated processing of metal workpieces including positioning, drilling, multi-stage grinding and blanking. It adopts a fully enclosed sound-insulated and fireproof dust removal shell, which effectively isolates dust pollution and noise, and is applicable to mass finishing of various metal hardware products.
Standard Configuration
A.FANUC Intelligent robot( 1 set)
B.Electric control System
C.Sand Belt Mchines
D.Two stations feeding table with vision system
E.Two Spindles Machine For Drilling.
F.Fully enclosed machine cover; Adopting soundproof and fireproof material to eliminate dust pollution
Robot Cell Features
1)The robot grinding cell achieves fully automatic control with one industrial robot which can be repeatedly programmed to complete various grinding operations in three-dimensional space.
2)Multiple available grinding contact wheels, abrasive belt rotating speed can be control, automatically adjust the belt tension, and automatically select the currently available contact wheels.
3)Off-line programming software is possible to save time for making programming.
4)Provide Programming Service for process development and creation of robot programs for our customer’s new parts.Modification of existing programs to produce higher quality finishes and reduced cycle time.Service is provided by one of our experienced programmers on site at the customer’s facility.
5)We have a professional fixture design team, and the professional fixture greatly improves the effect of grinding and polishing.
Packaging Standards
All machines are packaged in export-standard wooden cases with moisture-proof treatment. 👉 View packaging guide →
Technical Parameters
| Code | Specification | Parameters | Quantity | ||
|---|---|---|---|---|---|
| 1 | Robot | M20iD/25 | 1 | SET | |
| 2 | Belt sanders | 2200*1770*2272mm | 1 | SET | |
| 3 | Dual station feeding platform | 400*500*15 mm | 1 | SET | |
| 4 | Electrical control cabinet | 650*650*1700mm | 1 | SET | |
| 5 | Robot gripper fixture | – | 1 | SET | |
| 6 | Max. power | 20.78KW | |||
| 7 | Base | – | 1 | SET | |
| 8 | Rated voltage | 480V | |||
| 9 | Sanding belt specification | Length: 4000MM | |||
| Width: 30mm-120mm | |||||
| 10 | Max. line speed of sanding belt grinding | 29M/S | |||
| 11 | Three-phase asynchronous motor | 3KW-4P（1440r/min） | 4 | PCS | |
| 12 | Air pressure | 0.4~0.7Mpa | |||
| 13 | Equipment dimension | 5048.92*3200*2800mm | |||
| 14 | Total weight | 3500KG | |||
| 25 | Two Spindle Drilling Machine | Drilling Power Head | Motor power: 1.1KW | 1 | |
| 26 | Motor power: 0.75KW | 1 | |||
| 27 | YL74 | 1 | |||
| 28 | Milling Power Head | YL74 | 1 | ||
| 29 | Motor power:1.8KW | 1 | |||
| 30 | Motor Power:0.75KW | 1 | |||
| 31 | Working Table size | 270x300mm | |||
| 32 | Feed motor | 1.2KW | 1 | ||
| 33 | Solenoid valve | 2 | AirTAC | ||
| 34 | PLC | Wecon | |||
| 35 | Work fixture | YL375 | pneumatic | ||
| 36 | Main spindle RPM | 0-2000/min | |||
| 37 | Stroke | 360mm | |||
| 38 | Contactor | SP15 | Siemens | ||
Additional information
| Equipment Model | HLD25-G9-E2-VS |
|---|---|
| From | China |
| MOQ | 1 set |
| Payment Terms | L/C, T/T, or Western Union |
| Quick Dispatch | Ready to ship worldwide within 24 hours |
