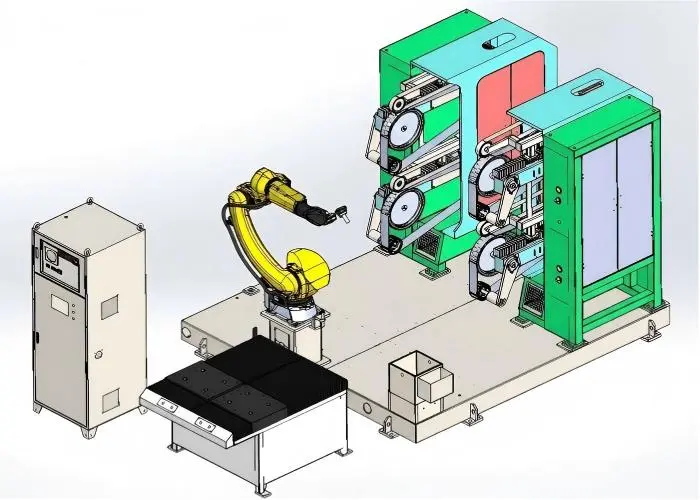

HLD50 Robotic Grinding Cell for Faucets & Hardware

If you are searching for an automatic robotic grinding cell for brass faucets, door handles or complex‑shape metal hardware, the HLD50‑D6D4‑A1 FANUC robot abrasive‑belt polishing workstation is your ideal automation solution.

Equipment Model

HLD50-D6D4-A1
From

China
MOQ

1 set
Payment Terms

L/C, T/T, or Western Union
Quick Dispatch

Ready to ship worldwide within 24 hours
Tags: , , ,

HLD50 Robotic Grinding Cell Description

The HLD50 robotic grinding cell is a fully automatic grinding system for faucet body, automotive part, lock and hardware manufacturers. Built around a FANUC M-710iC/50E 6-axis robot, it grinds parts in three-dimensional space using multiple contact wheels and abrasive belts running up to 29 m/s. Belt tension and contact-wheel selection are automatically controlled, while off-line programming software cuts setup time for new parts. A double-layer feeding table with a 650×1000 mm charging tray enables continuous loading, and a fully enclosed dust cover keeps the workshop clean — ideal for faucet factories, OEM suppliers and contract grinders.

Key Features

  • FANUC M-710iC/50E 6-axis robot, ±0.07 mm repeatability for consistent finishes
  • 8 abrasive belts (4 standard + 4 small) with automatic tension and wheel selection
  • Double-layer feeding table, 650×1000 mm charging tray for continuous loading
  • Fully automatic 3D-space grinding, reprogrammable for new part programs
  • On-site programming service plus professional fixture design team

Packaging Standards

All machines are packaged in export-standard wooden cases with moisture-proof treatment. 👉 View packaging guide →

HLD50 Robotic Grinding Cell Technical Sheet

# Items Parameters Qty.
1 Robot Cell (FANUC) M710iC/50E 1 Set
2 Sand Belt Machine
(Double Layer)		 1800*800*2100mm 1 Set
3 Double-layers feeding table Charging tray size 650*1000 mm 1 Set
4 Fixture   1 Set
5 Machine Power 20.5KW
6 Machine base   1 Set
7 Voltage 380V
8 Sand Belt specification 4000 mm 8 belts
(4 standard belts and 4 small belts )
9 Max. Speed of grinding 29M/S
10 Three-phase induction motor 3KW-4P（1440r/min）
11 Air Pressure 0.4~0.7Mpa
12 Machine size 3400*5000*2800mm
13 Total Weight 4000KG

Application Fields

Faucet Body Grinding

Precision grinding and surface polishing for various faucet bodies and sanitary hardware.

Automotive Parts Grinding

High-efficiency surface grinding and finishing for automotive components and metal parts.

Lock & Door Handle Grinding

Fine grinding and polishing for interior locks, door handles, and architectural hardware.

Hardware & Ornaments Grinding

Versatile surface finishing for all types of daily hardware, metal accessories, and decorative ornaments.

Q1: What materials can the HLD50 robotic grinding cell process?
A: Faucet bodies, automotive parts, locks, door handles, and all kinds of metal hardware and ornaments.

Q2: Which robot does the grinding cell use?
A: A FANUC M-710iC/50E 6-axis robot with ±0.07 mm repeatability and a 50 kg wrist load.

Q3: Can the cell be reprogrammed for new parts?
A: Yes. Off-line programming software plus on-site programming service let you create or modify robot programs for new parts quickly.

Q4: How many abrasive belts are included?
A: 8 belts (4 standard + 4 small), 4000 mm each, with automatic tension and contact-wheel selection.

Q5: What is the production footprint and power?
A: Machine size 3400×5000×2800 mm, total weight 4000 kg, powered by 380 V / 20.5 kW.
