Proposal Of Robot Grinding And Polishing Machine Model:HLD35-F4-G2
Share this
Tweet this
Email this

Proposal Of Robot Grinding And Polishing

Boost output with HLD35-F4-G2 robotic grinding and polishing cell. Powered by FANUC robot with custom fixtures & belt units. Inquire for factory prices!

Equipment Model

HLD35-F4-G2
From

China
MOQ

1 set
Payment Terms

L/C, T/T, or Western Union
Quick Dispatch

Ready to ship worldwide within 24 hours
Tags: , , , ,

Machine Description

This enclosed robotic workstation integrates a FANUC industrial robot, multi-station abrasive belt grinding units and cloth wheel polishing equipment, designed for automated surface finishing of metal workpieces.

Machine Layout

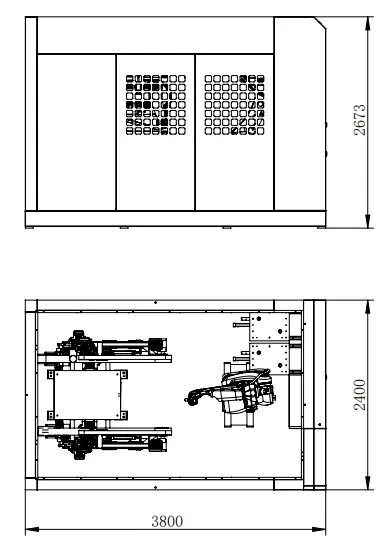

Layout Plan Diagram for HLD35-F4-G2 Equipment

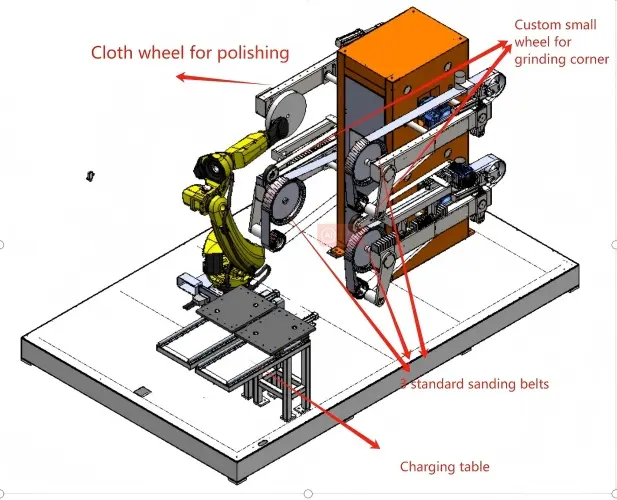

Machine Layout Diagram HLD35-F4-G2 Industrial Equipment Layout Drawing

Standard Configuration

A. FANUC Intelligent Robot (1 set)
B. Robot Control Cabinet
C. Electric Control System
D. Sand Belt Polishing Machine (with 5 belts: 3 standard belts and 2 small belts; and 1 cloth wheel)
E. Double-Station Feeding Table
F. Discharge Tray (customized according to the sample)

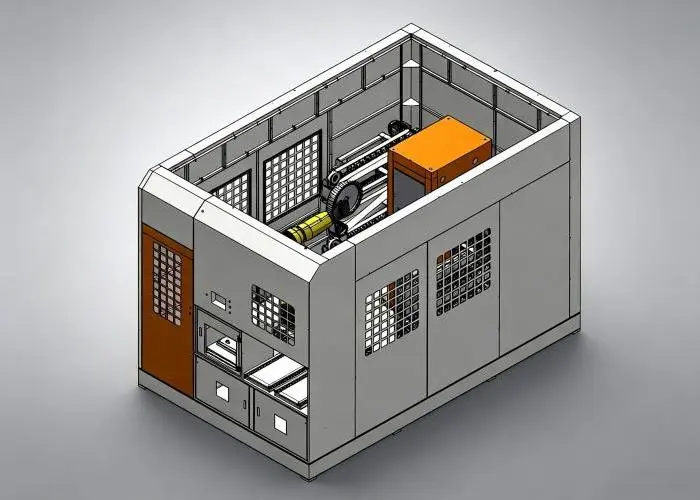

G. Includes a fully enclosed dust cover. The robot, control cabinet, and charging system are integrated into a single base. Built with soundproof and fireproof materials to eliminate dust pollution, it saves floor space, simplifies installation, and prevents frequent program realignment caused by uneven ground.

Technical Parameters

# Items Parameters Qty
1 Robot Cell (FANUC) M20iD/35 1 Set
2 Sand Belt Machine 1421*1625*2385mm 1 Set
3 Cloth wheel polishing machine 1000**1500*2200mm
3 Double-layers feeding table Charging tray dimension: 400*500*15 mm 1 Set
4 Fixture   1 Set
5 Max. Power of sand belt machine 16 KW
6 Max. Power of cloth wheel polishing machine 17.5 KW
7 Machine base   1 Set
8 Voltage 380V
9 Sand Belt specification 4000MM/2500MM 5 belts
(4 standard belts and 2 small belts )
10 Max. Liner speed of grinding 29M/S
11 Max. Liner speed of polishing 45M/S
12 Three-phase induction motor 3KW-4P（1440r/min）
13 Air Pressure 0.4~0.7Mpa
14 Machine size 2400*3800*2700mm
15 Total Weight 4000KG

Faucet Body Grinding

Precision grinding and surface finishing for various faucet bodies and sanitary hardware.

Automotive Parts Grinding

High-efficiency surface grinding for automotive components and metal parts.

Lock & Door Handle Grinding

Fine grinding and polishing for locks, door handles, and architectural hardware.

Hardware & Ornaments Grinding

Versatile surface finishing for all types of daily hardware, metal accessories, and decorative ornaments.
