High-efficiency induction furnace for copper and aluminum casting, delivering precise temperature control, stable melting, and improved production efficiency.Contact us today for a customized solution and expert technical support.

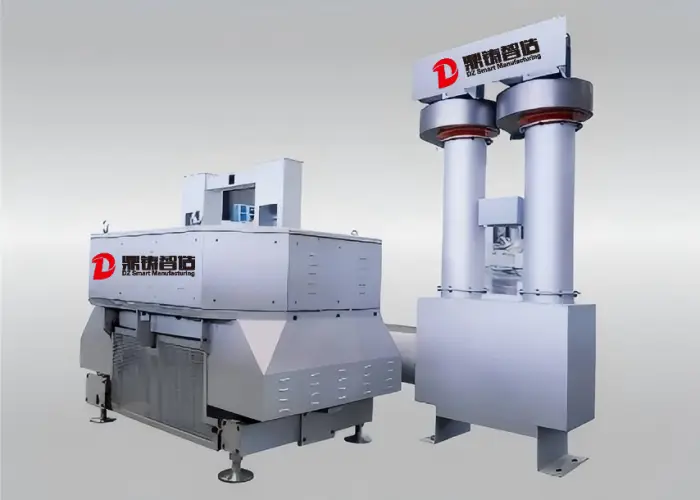

Brass and Copper Induction Melting Furnace for Manufacturing
Description
Machine Description
The electric furnace features a vertically positioned tertiary induction ring that ensures uniform metal circulation, promoting degassing, impurity removal, and consistent chemical composition. If one induction loop fails, the other continues heating to re-melt the metal without interrupting operation. The coil is efficiently cooled by an exhaust system. The furnace also automatically selects the optimal power gear from six options based on hourly copper output, using PID control to maintain precise temperature, improve energy efficiency, and ensure stable production.
Machine Features
- Safe and energy-efficient
- Long-lasting refractory materials
- Precise temperature control
- Stepless power and voltage control
Packaging Standards
Ackaging that complies with international sea freight transportation requirements. 👉 View packaging guide →
Technical Parameters
| Code | Item | DLU-45KW-F | DLU-125KW-F | DLU-90KW-S | DLU-120KW-S |
|---|---|---|---|---|---|
| 1 | Cooling method | Air cooling | Air cooling | Water cooling | Water cooling |
| 2 | Power rating | 45kw | 125kw | 90kw | 120kw |
| 3 | Rated voltage | 380V | 400V | 380V | 380V |
| 4 | Frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| 5 | Power factor | ±0.9 | ±0.9 | ±0.9 | ±0.9 |
| 6 | Max. melting temperature | 1100℃ | 1250℃ | 1100℃ | 1100℃ |
| 7 | Melting rate | 150kg/h | 400kg/h | 300kg/h | 500kg/h |
| 8 | Motor power | 2.2KW | 2.2KW | — | — |
| 9 | Motor speed | 1450r/min | 1450r/min | — | — |
| 10 | Full fan pressure | 620-500Pa | 620-500Pa | — | — |
| 11 | Air volume | 3500-5000m³/h | 3500-5000m³/h | — | — |
| 12 | Cooling water pressure | — | — | 1.5-2.5kg | 1.5-2.5kg |
| 13 | External dimensions (L*W*H) | 1300 × 900 × 1135mm | 1550 × 1200 × 1000mm | 1500 × 880 × 1400mm | 1450 × 900 × 1500mm |
| 14 | Chamber capacity | 600kg | 1050kg | 700kg | 700kg |
| 15 | Weight of the furnace body | 1600kg | 2890kg | 1500kg | ≈3500kg |
Additional information
| Equipment Model | DLU-120KW-S, DLU-125KW-F, DLU-45KW-F, DLU-90KW-S |
|---|---|
| From | China |
| MOQ | 1 set |
| Payment Terms | L/C, T/T, or Western Union |
| Quick Dispatch | Ready to ship worldwide within 24 hours |
Faucet Manufacturing
Precision cores for plumbing fittings and faucet components
Valve Production
Complex internal cavities for industrial and residential valves
Automotive Parts
Engine components and transmission parts requiring precise cores
Plumbing Hardware
Pipe fittings, connectors, and bathroom hardware components
Construction Hardware
Decorative and functional hardware for building applications
Versatile Casting Solutions
Suitable for copper and aluminum casting applications
Watch Video
Watch the melting furnace in action and see how it can transform your production line.
