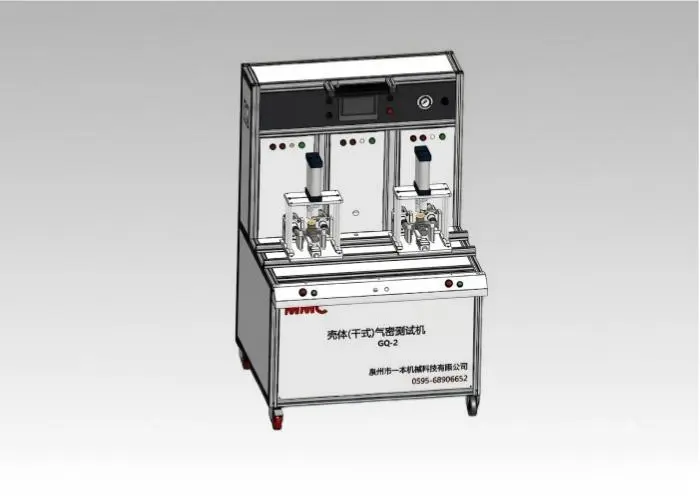

Housing Dry Air Tightness Tester for Faucet Leak Test
Description
Housing Dry Air Tightness Tester Description — Automated Faucet Leak
The housing dry air tightness tester is an automated leak detection machine for faucet, spout, valve and pipe-fitting manufacturers. It performs dry-air pressure leak tests on machined cast housings per relevant standards. Compressed air fills the product cavity, followed by pressure holding and leakage detection — fully automated by a PLC and touch HMI that outputs a clear pass/fail result. Pneumatic fixtures with rubber gaskets seal every opening, while sensors compare real-time pressure against the threshold and alarm on excess leakage. Two independent stations raise throughput for faucet factories and OEM suppliers.
Machine Features
- Dry-Air Leak Test (0.05–0.6 MPa) — Pressurized dry-air method detects leaks without water, ideal for machined cast housings.
- Dual-Station Independent Operation — Two stations run independently to double throughput on faucet bodies and fittings.
- PLC + HMI Automatic Control — Xinje PLC and touch HMI automate inflation, stabilization, detection and pass/fail output.
- Pneumatic Clamping & Sealing — Rubber-gasket fixtures clamp and seal water inlets, outlets and cartridge positions.
- Auto Counting & Alarm — Records tested quantity; red light + buzzer flag leakage above the set threshold.
Packaging Standards
Ackaging that complies with international sea freight transportation requirements. 👉 View packaging guide →
Housing Dry Air Tightness Tester Technical Sheet — Key Specifications
| # | Items | Spec. | Remarks |
|---|---|---|---|
| 1 | Voltage | AC220V | |
| 2 | Power | ≤0.2KW | |
| 3 | Air pressure | ≥0.6MPa | |
| 4 | ≥0.6MPa | 5 | |
| 5 | floor space | 1.0 m² (1*1m) | |
| 6 | Pressure for testing air | 0.01MPa～0.8MPa | |
| 7 | Accuracy | 0.0002MPa | |
| 8 | Pressurize time | 1.0～99.9 seconds | |
| 9 | Counter range | 0～65535 pcs |
Key Specifications
| # | Component | Specification | Qty | Brand / Remarks |
|---|---|---|---|---|
| 1 | Machine Size | 1100 × 800 × 1730 mm | — | — |
| 2 | Fixture | Aluminum alloy + POM + PU | 2 | — |
| 3 | PLC | Xinje | 1 | — |
| 4 | HMI | 7 inch | 1 | Kinco (步科) |
| 5 | Circuit Breaker | 2P 6A | 1 | LS (source “q” corrected to 1) |
| 6 | Switching Power Supply | 150 W | 2 | Meanwell (明纬) |
| 7 | Pressure Sensor | 1.0 MPa | 6 | accuracy 0.1% |
| 8 | Solenoid Valve | 2W030 | 12 | AirTAC |
| 9 | Air Tank | 10 L | 1 | — |
| 10 | Reversing Solenoid Valve | DC24V, 2-position 2-way | 2 | — |
| 11 | Barometer | 1.0 MPa | 1 | — |
| 12 | Air Cylinder | SDA50×50 | 4 | AirTAC |
| 13 | Pressure Regulating Valve | — | 1 | — |
| 14 | GFC | 0.9 MPa | 1 | — |
Additional information
| From | China |
|---|---|
| MOQ | 1 set |
| Payment Terms | L/C, T/T, or Western Union |
| Quick Dispatch | Ready to ship worldwide within 24 hours |
Application Fields
Faucet & Tap Manufacturers
Dry-air leak verification of cast faucet bodies before electroplating and assembly processes.
Valve & Spout Producers
Seal and passage leak testing on spouts, valves, and mixed-water outlet components.
Pipe Fitting & Plumbing Factories
Incoming quality control and in-line leak screening for pipe fittings and connectors.
OEM & Contract Suppliers
Documented pass/fail leak testing and quality traceability for private-label faucet lines.
R&D & Quality Laboratories
Pressure-decay method validation, process parameter tuning, and design quality verification.
Q: What does the housing dry air tightness tester do?
A: It performs dry-air pressure leak tests on faucet, spout, valve and pipe-fitting cast housings, automatically outputting a clear pass/fail result.
Q: What pressure range can it test?
A: Test air pressure ranges from 0.01 MPa to 0.8 MPa, with leak-detection sensitivity down to 0.0002 MPa accuracy; the supply air pressure required is ≥0.6 MPa.
Q: How many stations does it have?
A: It has two independent stations with identical function — each can test a product on its own, effectively doubling throughput.
Q: Is the operation automatic?
A: Yes. A Xinje PLC and touch-screen HMI control inflation, pressure stabilization, detection and result output automatically, including auto counting of tested pieces.
