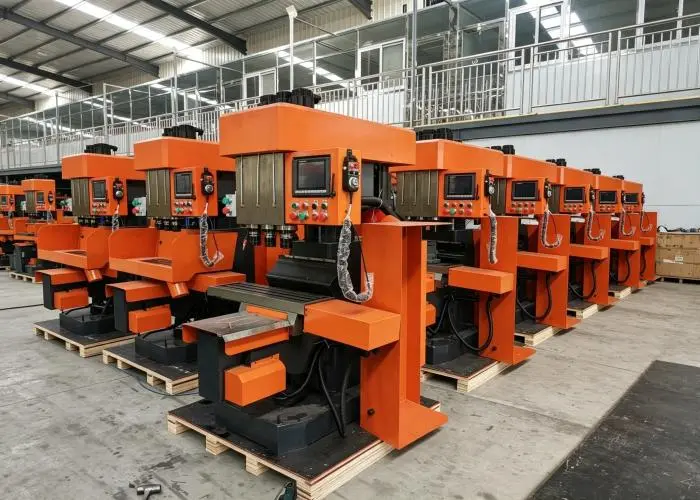

Servo control Three spindle Drilling and Tapping Machine
Description
Machine Description
This Three-Spindle CNC Drilling and Tapping Machine is a high-efficiency, multi-functional machining solution integrating drilling, tapping, and milling capabilities across all three spindles. Controlled by the advanced Taiwan Hust CNC system, it offers exceptional flexibility for complex tasks.
Built for durability and precision, the machine features Taiwan HIWIN ball screws, imported Korean pneumatic components, and high-frequency ground guide rails that ensure superior wear resistance and high repeat positioning accuracy. With its automatic cycle processing and smart safety interlock design, it significantly reduces labor intensity, enabling one operator to manage three machines simultaneously—drastically cutting labor costs while maximizing workshop productivity and safety.
Machine Features
- 1、Use Taiwan Hust cnc system. All three spindle can use for drilling,tapping,milling function.
- 2、Pneumatic components imported from Korea, guide rail by high-frequency grinding treatment, has high wear resistance.
- 3、Worktable, Middle Drag move by the HIWIN ball screw, equipped with pneumatic fixture.
- 4、Digital Control Positioning, high repeat positioning accuracy, easily and high efficiency debugging the cutter.
- 5、Automatic cycle processing, automatic open die after processing. Convenient and quick, can realize one person operate three sets machines at the same time, it is greatly reduce the labor cost and labor intensity.
- 6、Manual button-type mold is free to open and close. The starting button is not valid if the mold not close, the button of opening and closing is invalid during processing, it is greatly ensure the production safety.
- 7、Equipped with a simple protective cover to keep the workshop clean and tidy.
Packaging Standards
All machines are packaged in export-standard wooden cases with moisture-proof treatment. 👉 View packaging guide →
Technical Parameters
| NO. | Name | specification | Remark |
|---|---|---|---|
| 1 | Max Travel Distance on X axis (Screw rod) |
350mm | |
| 2 | Max Travel Distance on Y axis (Screw rod) |
160mm | |
| 3 | Max Travel Distance on Z1 axis | 140mm | |
| 4 | Max Travel Distance on Z2 axis | 140mm | |
| 5 | Max Travel Distance on Z3 axis | 140mm | |
| 6 | Axis distance between Z 1 / Z 2/Z3 | 120mm | |
| 7 | Spindle sleeve diameter | 105mm | |
| 8 | spindle nose to work table surface distance | 240-530mm | |
| 9 | lifting table max.moving distance | 320mm | |
| 10 | spindle taper# | NT40 | |
| 11 | max. Drilling diameter | Φ 50mm | |
| 12 | max.tapping diameter(brass) | Φ 50mm | |
| 13 | Z1 /Z2/Z3 axis speed(drilling) | 0-3000r/min | |
| 14 | motor power | 5.5kW | |
| 15 | work table size | 800*230mm | |
| 16 | T slot size ( number-slot width × pitch ) | 3-14 × 54 | |
| 17 | Machine size: L×W×H | 1420 × 1200 × 1800mm | |
| 18 | Machine weight | 1650KG |
Additional information
| Equipment Model | ZSK4150X3 |
|---|---|
| From | China |
| MOQ | 1 set |
| Payment Terms | L/C, T/T, or Western Union |
| Quick Dispatch | Ready to ship worldwide within 24 hours |
Application Fields
Perfectly suited for high-efficiency, high-volume, and multi-process complex machining of small-to-medium-sized metal or non-metal parts.
Automotive & Motorcycle Parts
Engine cylinder head accessories, transmission covers, brake calipers, and aluminum die-casting components.
3C Electronics & Hardware
Phone/laptop metal frames, aluminum heatsinks, LED display borders, and optoelectronic connectors.
Plumbing & Sanitary Ware
Faucet bodies, shower joints, intelligent lock panels, hinges, and aluminum profile connectors.
Pneumatic & Hydraulic Components
Cylinder end caps, pneumatic valve manifolds, hydraulic valve bodies, and pipe joints requiring precise multi-hole processing.
New Energy & Power Equipment
Lithium battery pack aluminum enclosures, charging pile metal parts, and copper/aluminum busbars.
High-Efficiency Mass Production
Ideal for small to medium-sized metal components requiring integrated drilling, tapping, and milling.
