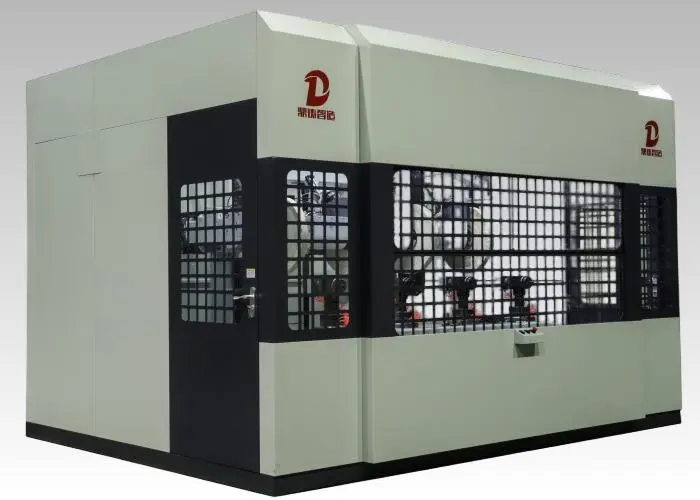

CNC Polishing Machine For Brass Faucet-NC64-7L-DZ4

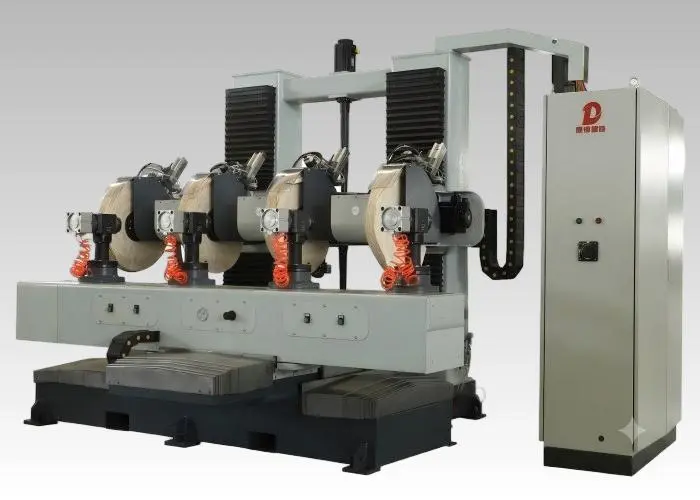

NC64-7L-DZ4 automatic polishing machine
Share this
Tweet this
Email this

NC64-7L-DZ4 6-Axis Brass Faucet CNC Polishing Machine | 4-Station

Professional NC64-7L-DZ4 automatic CNC polishing machine for brass faucet polishing, with 4-station 6-axis robotic system, ideal for faucet hardware surface finishing manufacturer.

Equipment Model

NC64-7L-DZ4
From

China
MOQ

1 set
Payment Terms

L/C, T/T, or Western Union
Quick Dispatch

Ready to ship worldwide within 24 hours
Tags: , , , ,

Machine Features

The NC64-7L-DZ4 automatic CNC polishing machine is a high-precision surface finishing system engineered for brass faucets, auto parts, and hardware components. Equipped with 4 manipulators featuring 6-axis rotary technology, it enables simultaneous multi-station operation that significantly boosts production throughput. The machine adopts advanced DZ motion control with stable performance and high accuracy. Its intelligent wear compensation system automatically detects torque reduction and adjusts all axes accordingly, while linear speed compensation maintains consistent polishing quality as the cloth wheel wears. With fully digital control storing up to 50 programs and a bilingual CN/EN touch panel, this polishing machine delivers reliable, repeatable results for manufacturers seeking industrial-grade surface finishing efficiency.

Equipment Characteristics

  • 6-Axis Robotic Polishing System:4 manipulators with 6-axis rotary system enable multi-station simultaneous operation for maximum flexibility and efficiency
  • Intelligent Wear Compensation: Automatic torque detection and compensation when polishing cloth wheel wears; linear speed auto-adjustment as wheel diameter decreases
  • Teaching Programming with Handheld Device: Easy manual mode to simulate and record polishing tracks; 50-program storage for quick recall
  • Full Digital Control with CN/EN Touch Panel: Intuitive HMI with fault code display, alarm pages, and free wax spraying program settings
  • Industrial Safety Design: Double-layer tempered glass, emergency stop, safety door interlock; noise under 80dB during operation

Packaging Standards

All machines are packaged in export-standard wooden cases with moisture-proof treatment. 👉 View packaging guide →

Technical Parameters

# Item Four-station Parameters
1 Outline dimension 4400*3400*3000（L*W*H）
2 Power 35KW/29KW
3 Voltage 50Hz
4 Atmospheric pressure 0.6MPa
5 Weight About 6T
6 Measure 4400*3400*2900（L*W*H）
7 X Axis Travel 1000mm
8 Y Axis Travel 900mm
9 Z Axis Travel 700mm
10 U Axis Travel ±90°
11 V Axis Travel ±360°
12 W Axis Travel ±720°
13 Programming storage 500
14 Wax Solid compound/Liquid wax

Basic Equipment

# Item Brand Remarks
1 Motion control system HUST
2 Servo motor HUST
3 Spindle cloth wheel motor HUST
4 Tool steering gear Taiwan Province custom made
5 Linear guide rail and screw PMI
6 Bearing HRB/NSK
7 Reducer Domestic customization
(Taiwan Province brand)
8 Frame Carbon steel
9 Shield CITIC
10 House Stove varnish

Application Fields

CNC Polishing Machine Applications — Versatile Surface Finishing for Multiple Industries

Brass Faucets & Sanitary Ware

Achieve uniform mirror-like finish on complex faucet geometries with consistent quality across production batches.

Automotive Components

Handle diverse auto component surfaces including die-cast aluminum, steel brackets, and trim pieces with programmable polishing paths.

Door Locks & Handles

Precision polish irregular lock bodies and handle contours with 6-axis flexibility and repeatable results.

Hardware & Jewelry Accessories

Suitable for small to medium metal parts (max φ280×280mm) requiring fine surface finishing.

<h2>Watch Video</h2>

Q: What is the cycle time for polishing brass faucets?
A: The NC64-7L-DZ4 achieves 4 pieces per 90 seconds (22.5 seconds per piece) for brass faucet buffing, depending on surface complexity and finish requirements.

Q: What products can this polishing machine handle?
A: It is suitable for brass faucets, auto parts, door locks, handles, hardware, and jewelry accessories with maximum product dimensions of φ280×280mm.

Q: Is the programming difficult for operators?
A: No. The machine features teaching programming with a portable handheld device. Operators can manually simulate the polishing motion and record the track. Pre-set parameters are also available for automatic operation.
