LS Falling Sand Abrasion Tester for Coating Wear Resistance

Professional LS falling sand abrasion tester for aluminum coating manufacturers: quantifies fluorocarbon, paint and varnish wear resistance per GB/T5237.5 standard.

Equipment Model

LS
From

China
MOQ

1 set
Payment Terms

L/C, T/T, or Western Union
Quick Dispatch

Ready to ship worldwide within 24 hours

Falling Sand Abrasion Tester LS Description — Coating Wear Resistance Testing Solution

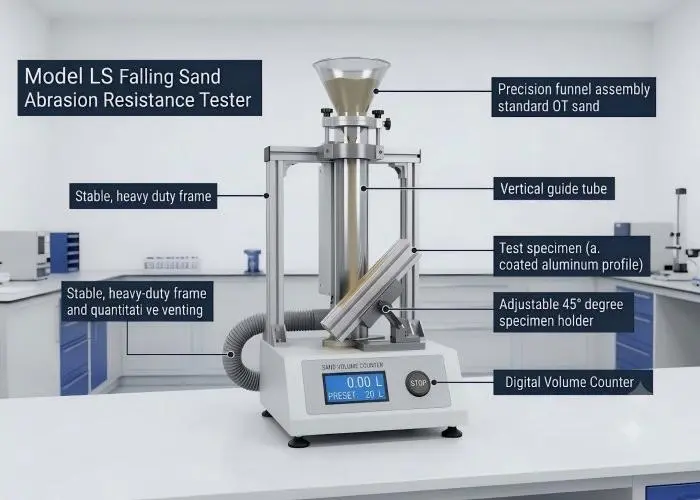

The Model LS Falling Sand Abrasion Resistance Tester is a standards-compliant coating wear resistance testing machine designed for organic coatings, varnishes, and fluorocarbon-coated aluminum alloy architectural profiles per GB/T5237.5—2000. Standard sand falls freely through a guide tube from a set height to abrade the coating until the substrate appears. Abrasion resistance is quantified by the volume of abrasive per unit thickness—making it an essential quality control instrument for coating manufacturers, third-party inspection agencies, and R&D labs.

Key Features & Highlights

  • Standard-Compliant Falling Sand Testing: Engineered for highly accurate, repeatable abrasive wear testing conforming to GB/T 5237.5-2000 and ASTM D968.
  • Precise Sand Flow & Height Control: Features a calibrated guide tube with strict vertical alignment to ensure consistent, repeatable test conditions.
  • Auto Counting & Preset Shut-Off: Automatically halts operation when the sand is depleted or the pre-configured volumetric target is reached, preventing test errors.
  • Quantitative Wear Evaluation: Measures volumetric abrasive consumption (Liters) per unit coating thickness, delivering clear and objective test data.
  • Heavy-Duty Ergonomic Design: Built with an integrated stable frame, precision funnel assembly, and an adjustable 45° specimen holder for smooth lab operations.

Packaging Standards

Ackaging that complies with international sea freight transportation requirements. 👉 View packaging guide →

Technical Specifications

LS Falling Sand Abrasion Tester Technical Sheet — Key Specifications

Parameter Specification
Model LS Series
Testing Angle 45°
Funnel Cone Angle 60°
Guide Tube Inner Diameter Ф19 mm
Guide Tube Length 914 mm
Machine Dimensions (L×W×H) 450 mm × 500 mm × 1370 mm

Application Fields

This tester is widely utilized by QA/QC laboratories, third-party inspection agencies, and research institutes across critical manufacturing sectors:

Architectural Aluminum Profiles

Fluorocarbon (PVDF) and powder coating inspection for building materials and extrusion profiles.

Automotive & Transportation

Surface coating durability testing for automotive bodies, exterior parts, and transport equipment.

Aerospace & Industrial Coatings

High-performance protective finish evaluation for critical industrial and aerospace components.

QA/QC & Research Labs

Widely utilized by quality assurance laboratories, third-party inspection agencies, and R&D research institutes.

Q: What standard does the LS abrasion tester comply with?
A: It conforms to the Chinese National Standard GB/T5237.5—2000 for abrasion resistance of fluorocarbon coatings on aluminum alloy architectural profiles, using the falling sand method.

Q: How does the falling sand abrasion test work?
A: Standard sand falls freely through a guide tube from a set height onto the coated sample, abrading the surface until a 4 mm substrate exposure appears. Abrasion resistance is measured by the volume of sand (liters) consumed.

Q: What coatings can it test?
A: Fluorocarbon coatings, color paints, varnishes, spray coatings and related surface treatments on metal substrates.

Q: Is the test automatic?
A: Yes. The device features auto counting and stop — it halts automatically when the sand is depleted or a preset volume is reached, ensuring consistent, repeatable results.
