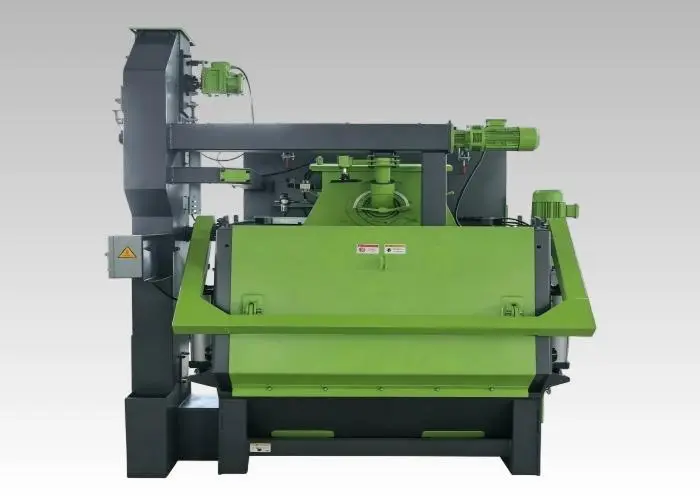

Caterpillar Shot Blasting Machine
Description
Machine Description
The Caterpillar Shot Blasting Machine is designed for efficient surface cleaning, rust removal, descaling, and strengthening of metal workpieces. It uses a high-speed rotating blast wheel to propel steel shots onto the surface of parts loaded in a durable rubber or manganese steel tumble belt. The continuous tumbling action ensures all surfaces are evenly treated for consistent cleaning results.
This machine is ideal for cleaning small castings, forgings, stamped parts, gears, springs, and other metal components, making it an excellent solution for foundries, forging plants, and metal fabrication industries.
Machine Features
- Equipped with a high-strength wear-resistant rubber track or manganese steel track for reliable and long-lasting operation.
- Uses a high-efficiency cantilever centrifugal blast wheel with a simple structure and extended service life.
- Available with three blast speeds (75 m/s, 80 m/s, and 85 m/s) to meet different cleaning requirements.
- Features an international quick-change blast wheel design, reducing maintenance time and improving production efficiency.
- Incorporates a BE separator that provides excellent abrasive separation efficiency, improving blasting performance and extending blade life.
- Equipped with a high-efficiency bag dust collector, ensuring dust emissions remain below environmental standards while creating a cleaner working environment.
- Includes manual shot control gate and discharge door for easier operation and maintenance.
- Can operate as a standalone machine or be integrated into an automatic production line for continuous manufacturing.
Packaging Standards
Ackaging that complies with international sea freight transportation requirements. 👉 View packaging guide →
Technical Parameters
| Name | Specification |
|---|---|
| Machine Size (L × W × H) | 2000 × 2000 × 2800 mm |
| Cleaning Chamber Lifting Mode | Pneumatic |
| Track End Disc Diameter | 650 mm |
| End Disc Spacing | 900 mm |
| Track Size | 1130 × L3500 × Ø20 mm |
| Maximum Track Volume | 100 L |
| Reducer Box Power | 0.75 kW |
| Maximum Weight per Workpiece | 10 kg |
| Maximum Workpiece Size | L ≤ 300 mm, ≥1010 ≤ Ø ≤ 200 mm |
| Maximum Load | <300 kg |
| Workpiece Temperature During Blasting | ≤50°C |
| Impeller Head | 1 pc |
| Capacity | 100 kg/min |
| Impeller Head Power | 7.5 kW |
| Impeller Speed | 2915 r/min |
| Hoister Capacity | 6000 kg/h |
| Hoister Power | 1.1 kW |
| Separator Capacity | 6000 kg/h |
| Separator Method | Air Separator and Filtration |
| Electrical Control System | Manual |
| Workpiece Surface Roughness | ≤ Ra50 μm |
| Exhaust Emission | <10 mg/m³ |
| Operating Relative Humidity | ≤96% |
| Total Power | 11.6 kW |
| Air Compression | 0.4–0.6 MPa, 0.3 m³/min |
Additional information
| Equipment Model | B100L |
|---|---|
| From | China |
| MOQ | 1 set |
| Payment Terms | L/C, T/T, or Western Union |
| Quick Dispatch | Ready to ship worldwide within 24 hours |
Application Fields
Crawler Shot Blasting Machine is widely used for surface cleaning, rust removal, descaling and shot peening of various metal components in foundries and manufacturing industries.
Metal Castings
Remove sand, oxide scale and surface impurities from iron, steel and non-ferrous castings.
Forging Industry
Clean forged parts and improve surface quality before machining, coating or heat treatment.
Automotive Components
Shot blast gears, springs, transmission parts and other automotive components for enhanced durability.
Stamping & Metal Fabrication
Eliminate burrs, rust and oxide layers from stamped and fabricated metal parts.
Hardware Manufacturing
Prepare industrial hardware, fasteners and mechanical components with clean and strengthened surfaces.
General Metal Processing
Suitable for batch cleaning and surface strengthening of various impact-resistant metal workpieces.
