Fully automatic operation with rapid die-change technology maximizes 24/7 production efficiency while reducing labor costs, downtime, and maintaining consistent casting quality.

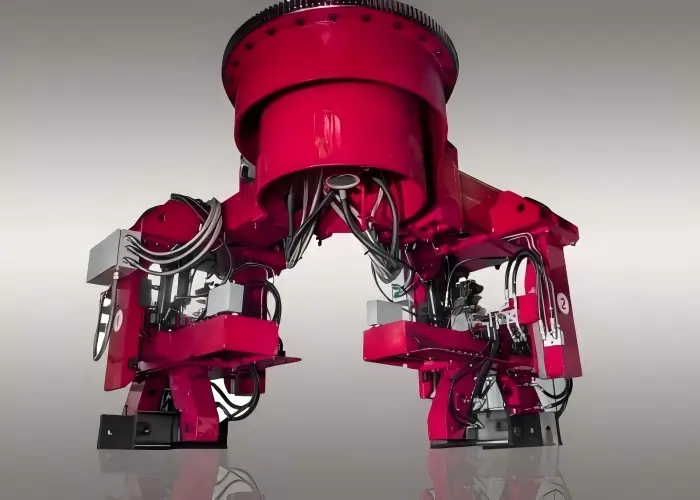

Double Manipulators Low Pressure Die Casting Machine
Description
Machine Description
The low-pressure die casting process ensures low turbulence and a precisely controlled filling sequence by feeding molten metal directly into the die from the holding furnace below. Specially designed for the mass production of brass sanitary fittings, faucets, water meters, and valve bodies, this two-manipulator low-pressure die casting machine features fully automatic operation, delivering excellent manufacturing efficiency alongside remarkably short die-change times.
Machine Advantages
- Cost-efficient production: Multiple dies. Reduced melting loss. Increased yield (less circulating material). One-man operation. Cost savings in subsequent stages of manufacture. For robot grinding low pressure die casting is a must.
- Humanization of the workstation: Ergonomic design of the workstation. Minimizing of smoke, heat, noise and danger of accidents.
- High quality castings and high-precision repeatability: Automated casting. Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube.
Packaging Standards
All machines are packaged in export-standard wooden cases with moisture-proof treatment. 👉 View packaging guide →
Technical Parameters
| # | – | Items | RD-5040-S (Standard type) |
RD-8050-S (Larger type) |
Remarks |
|---|---|---|---|---|---|
| 1 | Basic Parameter | Machine size | 7000*6000*4200mm | 7400*6000*4350mm | |
| 2 | Total Weight | 20T | 22T | ||
| 3 | Total power | 180KW | 180KW | ||
| 4 | Voltage | 380v | 380v | ||
| 5 | Die | Max. Die dimensions | 600*400*240mm | 800*500*240mm | |
| 6 | Max. Die thickness | 2*120mm | 2*120mm | ||
| 7 | Max. Die Opening Stroke | 372mm | 372mm | ||
| 8 | Max. Die Weight | 250KG | 500KG | ||
| 9 | Max. Force of die closing | 2400KG | 4000KG | ||
| 10 | Max. Force Of Ejector | 1000KG | 1000KG | ||
| 11 | Max. Die Ejector Stroke | 48mm | 48mm | ||
| 12 | Furnace | Melting rate | 680KG/H | 680KG/H | |
| 13 | Capacity | 2800KG | 2800KG | ||
| 14 | Inductor | 3*55KW | 3*35KW | ||
| 15 | Hydraulic | Motor power | 12KW | 8.7KW | |
| 16 | Rated Pressure | 8Mpa | 8Mpa | ||
| 17 | Hydraulic Fluid Temp. | ⩽55 ℃ | ⩽55 ℃ | ||
| 18 | Cooling system | Water PH | 7~8.5 | 7~8.5 | |
| 19 | Pressure | 3bar | 3bar | ||
| 20 | Water temperature | 20-25 ℃ | 20-25 ℃ | ||
| 21 | Flow | ⩾300L/Min ⩽600L/Min | ⩾300L/Min ⩽700L/Min | ||
| 22 | Air pressure | Compressed Air | 0.5-0.6Mpa | 0.5-0.6Mpa | |
| 23 | Compressed Air Consumption | 18 m³/H | 18 m³/H | 1KG | |
| 24 | Gas | Pressure | 0.5 bar | 0.5 bar | Option |
| 25 | Flow | 0.225 m³/h | 0.225 m³/h | Option |
Additional information
| Equipment Model | RD-5040-S, RD-8050-S |
|---|---|
| From | China |
| MOQ | 1 set |
| Payment Terms | L/C, T/T, or Western Union |
| Quick Dispatch | Ready to ship worldwide within 24 hours |
Application Fields
Sanitary Fittings & Faucets
Faucet bodies, shower mixing valves, and various bathroom hardware. Low-pressure die casting ensures smooth, dense internal cavities (such as flow channels) to effectively prevent leakage.
Water Meters & Metering Devices
Water meter copper bodies and related precision copper components.
Valves & Pipe Fittings
Various copper valve bodies for water and gas applications, as well as industrial pipe fittings.
