CNC Gang Tool Lathe DF36 for Precision Brass Machining
Description
CNC Gang Tool Lathe DF36 Description — Precision Turning for Brass Faucet Parts

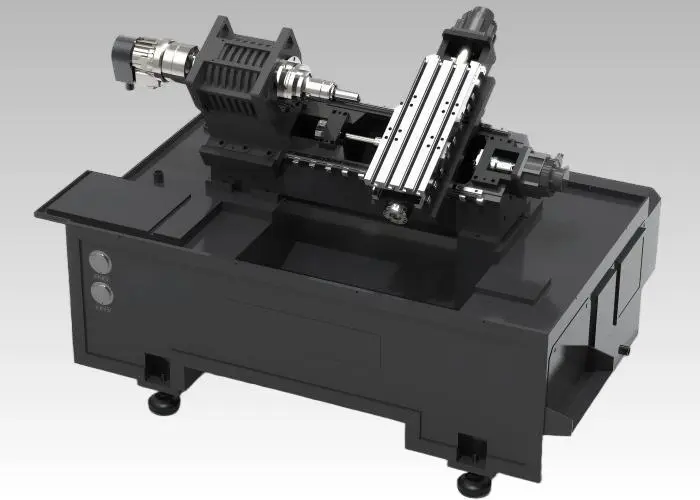

The CNC gang tool lathe DF36 is a compact, high-precision turning machine for brass faucet parts, fittings and small-batch manufacturers. Driven by a Syntec 22TA controller and JSWAY’s self-developed balanced electric spindle (up to 6000 rpm), it delivers high-gloss finishes with repeat positioning accuracy of 0.005 mm. PMI/HIWIN linear guides and ball screws with NSK/FAG bearings secure transmission precision, while direct servo-screw coupling on X/Z axes keeps thermal growth minimal. The gang tool holder supports 1–8 tools for fast changeovers, and an optional automatic bar feeder enables unmanned production — ideal for faucet factories and CNC machining suppliers.
Machine Features
- Syntec 22TA CNC Control:Stable, user-friendly controller for precision turning and automated production.
- 0.005 mm Repeat Accuracy:NSK/FAG screw bearings and PMI/HIWIN ball screws secure tight tolerances.
- 6000 rpm Balanced Spindle:JSWAY self-developed electric spindle delivers high-gloss, high-speed cutting.
- Gang Tool Turret (1–8 tools):Fast tool arrangement; optional auto bar feeder for lights-out runs.
- Compact & Enclosed Design:Space-saving footprint with full guarding, easy to operate and maintain.
Features & Specifications — Key Advantages
- Syntec 22TA Control — Reliable, intuitive CNC for precision turning and automation.
- 6000 rpm Balanced Spindle — JSWAY self-developed electric spindle for high-gloss cutting.
- 0.005 mm Repeat Accuracy — NSK/FAG bearings + PMI/HIWIN screws ensure tight tolerance.
- Fast X/Z Transmission — Direct servo-screw coupling minimizes thermal growth.
- Auto Intermittent Lubrication — Keeps rails and screws in good lubrication state.
- Gang Tool + Auto Feeder — 1–8 tools; optional bar feeder for unmanned runs.
Packaging Standards
All machines are packaged in export-standard wooden cases with moisture-proof treatment. 👉 View packaging guide →
CNC Gang Tool Lathe DF36 Technical Sheet — Key Specifications
| Item | Specification | |
|---|---|---|
| Control system | Syntec 22TA | |
| Processing range | Center height | 39/60mm |
| Max. rotation diameter | Ø280mm | |
| Max. processing length | 100mm | |
| Max. bar diameter | Ø35mm | |
| Spindle through hole diameter | Ø45mm | |
| Repeat positioning accuracy | 0.005mm | |
| Stroke | X axis | 780mm |
| Z axis | 265mm | |
| Moving speed(Z/X) | 30m/min | |
| Tool | Gang tool quantity | 1-8 |
| Motor power | X/Z-axis feed servo motor power | 1.1 KW |
| Spindle power | 5.5 KW | |
| total power | 8 KW | |
| Lathe size | 1998x1431x1711mm | |
Machine Main Parts List
| No. | Name | Model | Supplier | qty |
|---|---|---|---|---|
| 1 | Machine bed | DF36 | Jsway | 1 set |
| 2 | Main spindle | A2-4 | Jsway | 1 set |
| 3 | Linear Guide | X: 25 Z:25 | PMI/HIWIN | 1 set |
| 4 | Ball Screw | X: 25 Z:25 | PMI/HIWIN | 1 set |
| 5 | Z axis screw bearing | 20TAC | NSK/FAG | 1 set |
| 6 | X axis screw bearing | 20TAC | NSK/FAG | 1 set |
| 7 | Lubrication unit | Baotn | 1 set | |
| 8 | Guide rail telescopic cover | Jsway | 1 set | |
| 9 | Cooling pump | LUIKAR | 1 set | |
| 10 | Controller | 22TA | Syntec | 1 set |
| 11 | Spindle drive | Syntec | 1 set | |
| 12 | X/Z axis servo motor | Syntec | 1 set | |
| 13 | Electrical component | SCHNEIDER/CHNT | 1 set |
Additional information
| Equipment Model | DF36 |
|---|---|
| From | China |
| MOQ | 1 set |
| Payment Terms | L/C, T/T, or Western Union |
| Quick Dispatch | Ready to ship worldwide within 24 hours |
Application Fields
Brass Faucets & Sanitaryware Parts
Precision turning of faucet bodies, fittings, and pipe connectors.
CNC Machining Workshops
Ideal for small-batch, high-mix turning of brass and aluminum components.
Automotive & Electronics Fittings
Machining tight-tolerance turned parts with 0.005 mm repeat positioning accuracy.
Hardware & Fastener Manufacturers
Gang-tooling efficiency designed for high-volume mass production of small hardware parts.
Q: What is the DF36 CNC gang tool lathe used for?
A: It is a compact precision turning machine for brass faucet parts, fittings and small-batch components, controlled by a Syntec 22TA CNC system.
Q: What accuracy and spindle speed does it offer?
A: Repeat positioning accuracy is 0.005 mm, with a JSWAY self-developed balanced electric spindle reaching up to 6000 rpm for high-gloss cutting.
Q: What is the maximum machining capacity?
A: Max. rotation diameter Ø280 mm, max. processing length 100 mm, max. bar diameter Ø35 mm and spindle through-hole Ø45 mm.
Q: Does it support automated production?
A: Yes. The gang tool holder (1–8 tools) plus an optional automatic bar feeder controlled by the CNC enables unmanned, collaborative production.
