Robotic Cell Grinding And Polishing Machine With Special whell ( 8 belts)
Description
Machine Description

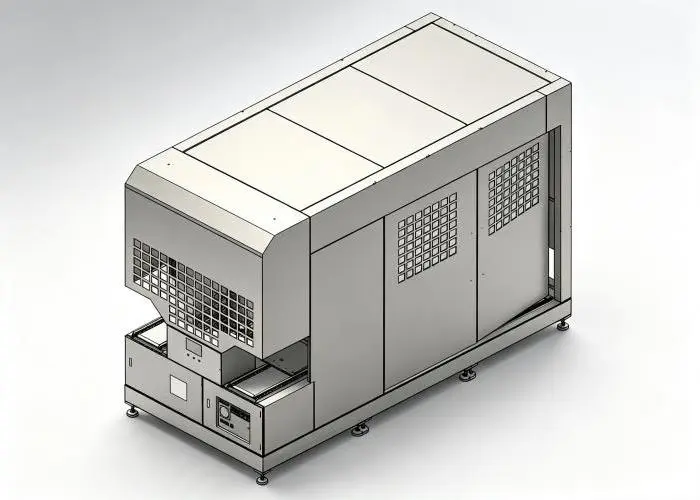

The HLD35-F4-G2 is an integrated robotic grinding and polishing workstation specially developed for precision finishing of hardware workpieces. Equipped with FANUC M710iC/35 industrial robot, it adopts a composite processing module consisting of 8 sand belts and hemp polishing wheels, integrating loading/unloading, rough grinding, fine polishing, dust and sound insulation functions in one unit. It is ideal for fully automatic grinding and polishing of faucet bodies, automotive parts, door locks & handles, and various hardware ornaments.
Machine Features
- The robot grinding cell achieves fully automatic control with one industrial robot which can be repeatedly programmed to complete various grinding operations in three-dimensional space.
- Multiple available grinding contact wheels, abrasive belt rotating speed can be control, automatically adjust the belt tension, and automatically select the currently available contact wheels.
- Off-line programming software is possible to save time for making programming.
- Provide Programming Service for process development and creation of robot programs for our customer’s new parts.Modification of existing programs to produce higher quality finishes and reduced cycle time.Service is provided by one of our experienced programmers on site at the customer’s facility.
- We have a professional fixture design team, and the professional fixture greatly improves the effect of grinding and polishing.

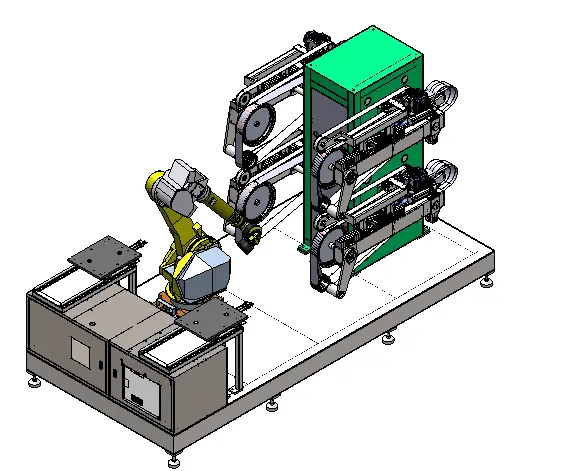

Machine Layout
Standard Configuration
A. FANUC Intelligent Robot (1 set)
B. Robot Control Cabinet
C. Electric Control System
D. Sand Belt Polishing Machine (2 sets)
E. Three-Layer Feeding Table
F. Discharge Tray (Customized according to the sample)
G. Fully enclosed dust cover and control cabinet, along with a charging system mounted on a single base with the robot. Constructed with soundproof and fireproof materials to eliminate dust pollution, saving space while remaining easy to install. This design avoids the need for frequent program adjustments caused by uneven ground or misaligned base components.
Packaging Standards
All machines are packaged in export-standard wooden cases with moisture-proof treatment. 👉 View packaging guide →
Technical Parameters
| # | Items | Parameters | Qty. |
|---|---|---|---|
| 1 | Robot Cell (FANUC) | M710iC/35 | 1 Set |
| 2 | Sand Belt Machine (Double Layer) | 1421*1625*2385mm | 1 Set |
| 3 | Double-station feeding table | Charging tray size 400*500*15 mm | 1 Set |
| 4 | Fixture | 1 Set | |
| 5 | Machine Power | 20.5KW | |
| 6 | Machine base | 1 Set | |
| 7 | Voltage | 380V | |
| 8 | Sand Belt specification | 4000MM/2500MM | 8 belts (4 standard belts and 4 small belts ) |
| 9 | Max. Speed of grinding | 29M/S | |
| 10 | Three-phase induction motor | 3KW-4P (1440r/min) | |
| 11 | Air Pressure | 0.4~0.7Mpa | |
| 12 | Machine size | 1800*4100*3000mm | |
| 13 | Total Weight | 4000KG | |
| 21 | Hemp wheels size | Dia.400;The width can be customized. | 1pc |
| 22 | Polishing Machine with hemp wheel and cloth wheel | 1 set |
Additional information
| Equipment Model | HLD35-F4-G2 |
|---|---|
| From | China |
| MOQ | 1 set |
| Payment Terms | L/C, T/T, or Western Union |
| Quick Dispatch | Ready to ship worldwide within 24 hours |
Application Fields
Faucet Body Grinding
Precision grinding and surface finishing for various faucet bodies and sanitary hardware.
Automotive Parts Grinding
High-efficiency surface grinding for automotive components and metal parts.

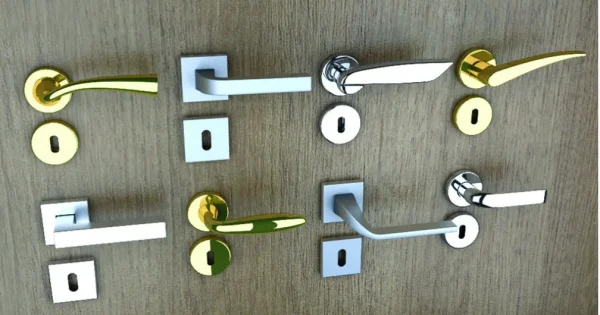

Lock & Door Handle Grinding
Fine grinding and polishing for locks, door handles, and architectural hardware.
Hardware & Ornaments Grinding
Versatile surface finishing for all types of daily hardware, metal accessories, and decorative ornaments.
