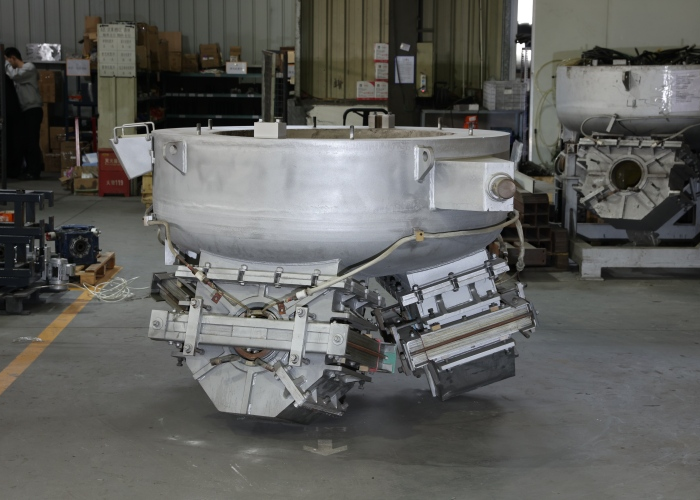

Copper melting furnace for brass faucet production

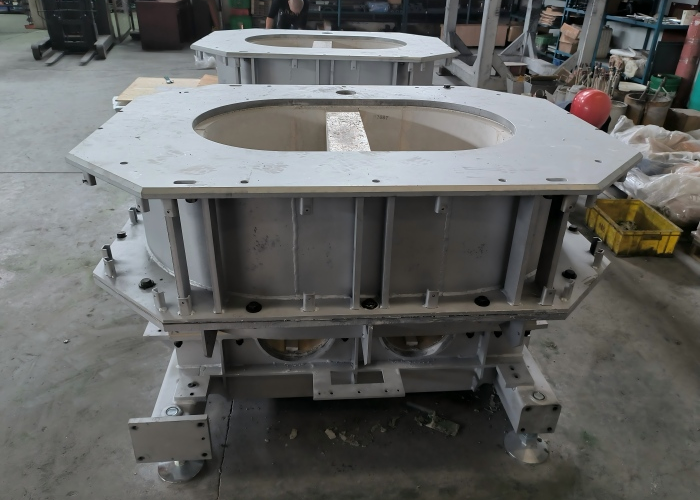

Electric melting furnace for brass water meter production

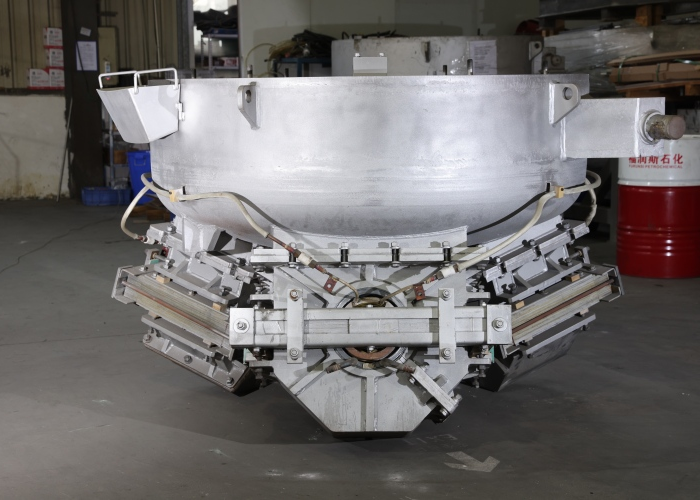

Industrial electric furnace for melting copper
Share this
Tweet this
Email this

Brass and Copper Induction Melting Furnace for Manufacturing

High-efficiency induction furnace for copper and aluminum casting, delivering precise temperature control, stable melting, and improved production efficiency.Contact us today for a customized solution and expert technical support.

Equipment Model

DLU-120KW-S, DLU-125KW-F, DLU-45KW-F, DLU-90KW-S
From

China
MOQ

1 set
Payment Terms

L/C, T/T, or Western Union
Quick Dispatch

Ready to ship worldwide within 24 hours
Tags: , , ,

Machine Description

The electric furnace features a vertically positioned tertiary induction ring that ensures uniform metal circulation, promoting degassing, impurity removal, and consistent chemical composition. If one induction loop fails, the other continues heating to re-melt the metal without interrupting operation. The coil is efficiently cooled by an exhaust system. The furnace also automatically selects the optimal power gear from six options based on hourly copper output, using PID control to maintain precise temperature, improve energy efficiency, and ensure stable production.

Machine Features

  • Safe and energy-efficient
  • Long-lasting refractory materials
  • Precise temperature control
  • Stepless power and voltage control

Packaging Standards

Ackaging that complies with international sea freight transportation requirements. 👉 View packaging guide →

Technical Parameters

Code Item DLU-45KW-F DLU-125KW-F DLU-90KW-S DLU-120KW-S
1 Cooling method Air cooling Air cooling Water cooling Water cooling
2 Power rating 45kw 125kw 90kw 120kw
3 Rated voltage 380V 400V 380V 380V
4 Frequency 50Hz 50Hz 50Hz 50Hz
5 Power factor ±0.9 ±0.9 ±0.9 ±0.9
6 Max. melting temperature 1100℃ 1250℃ 1100℃ 1100℃
7 Melting rate 150kg/h 400kg/h 300kg/h 500kg/h
8 Motor power 2.2KW 2.2KW — —
9 Motor speed 1450r/min 1450r/min — —
10 Full fan pressure 620-500Pa 620-500Pa — —
11 Air volume 3500-5000m³/h 3500-5000m³/h — —
12 Cooling water pressure — — 1.5-2.5kg 1.5-2.5kg
13 External dimensions (L*W*H) 1300 × 900 × 1135mm 1550 × 1200 × 1000mm 1500 × 880 × 1400mm 1450 × 900 × 1500mm
14 Chamber capacity 600kg 1050kg 700kg 700kg
15 Weight of the furnace body 1600kg 2890kg 1500kg ≈3500kg

Faucet Manufacturing

Precision cores for plumbing fittings and faucet components

Valve Production

Complex internal cavities for industrial and residential valves

Automotive Parts

Engine components and transmission parts requiring precise cores

Plumbing Hardware

Pipe fittings, connectors, and bathroom hardware components

Construction Hardware

Decorative and functional hardware for building applications

Versatile Casting Solutions

Suitable for copper and aluminum casting applications

Watch Video

Watch the melting furnace in action and see how it can transform your production line.
